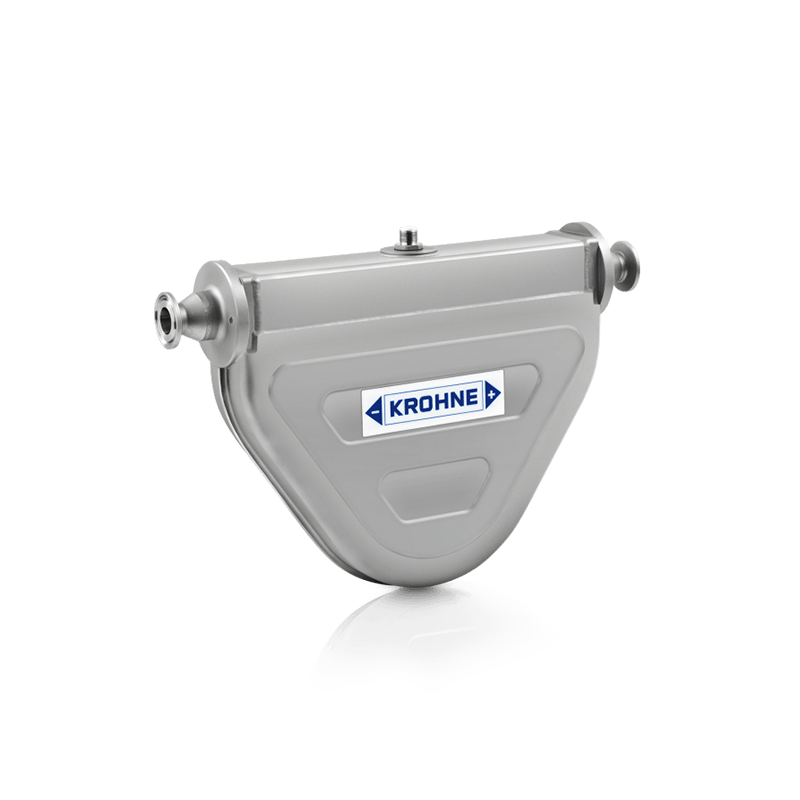

KROHNE OPTIBATCH 4011 Coriolis mass flowmeter
KROHNE OPTIBATCH 4011 Coriolis mass flowmeter for linea…
Description
KROHNE OPTIBATCH 4011 Coriolis mass flowmeter for linear and rotating filling machines
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIBATCH |
| Product positioning | For linear and rotating filling machines |
| Measurement principle | Coriolis |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | 0…+100°C/ +32…+212°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L) |
Process connections
| Hygienic connections | Clamp (DIN 32676): DN10, DN15, DN20, DN25 Clamp (ISO 2852): 25 Tri-Clamp: ½”, ¾”, 1″ Clamp (BS 4825): ¾” Threaded ferrule (DIN 11851): DN10, DN15, DN20, DN25 Flange with collar (DIN 11864-2A): DN20 Threaded ferrule (SMS 1146): 25 mm IDF: 10A, 15A |
Approvals/Standards
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004, ASME BPE |
Communication
| Discrete outputs | Pulse, Frequency |
| Digital outputs | Modbus RTU |
