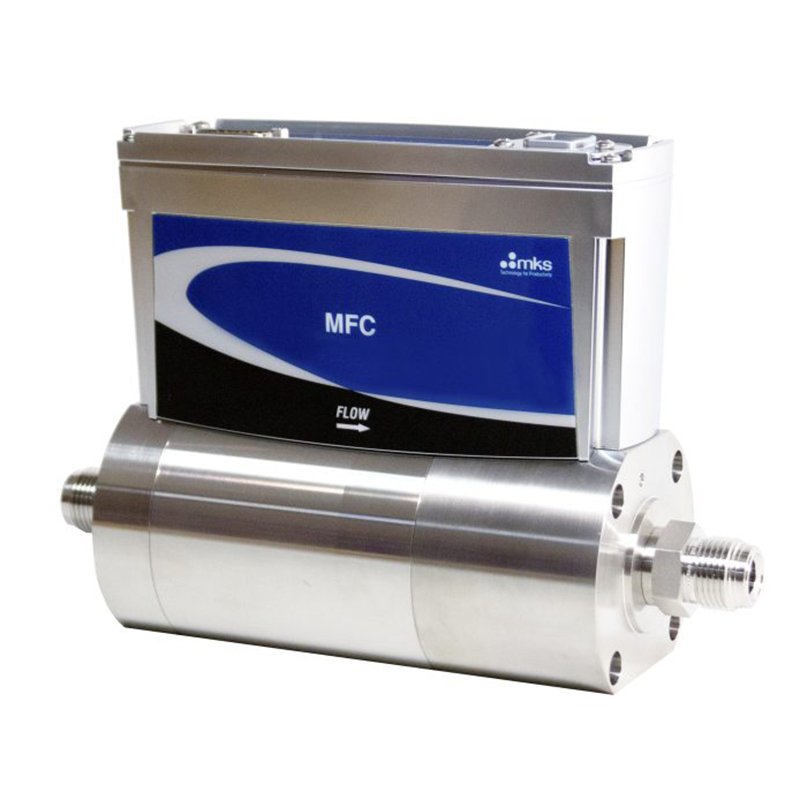

The IE1000A mass flow controller is an elastomer-sealed, multi-gas/multi-range MFC designed for use in demanding industrial environments where protection against liquid and dust ingress is crucial. It features an IP66-rated enclosure to ensure resistance to liquid and dust intrusion.

Key Features of the IE1000A Mass Flow Controller:

• Flow rates ranging from 501 to 1000 slm (N2 equivalent)
• Seal and valve plug options available in Viton, Buna, Neoprene, or EPDM
• Multiple I/O options including analog, RS485, Profibus™, or DeviceNet™
• Standard closed conductance leak rate of less than 1.0% of Full Scale
• Rapid settling time of 1 to 2 seconds

The IE1000A MFC offers a broad flow range from 501 to 1000 slm, making it suitable for high flow applications. Its unique control valve design enables rapid response to set point changes while maintaining closed conductance leak rates significantly lower than other high flow mass flow controllers.

The choice of seal and valve plug materials, such as Viton, Buna, Neoprene, or EPDM, provides compatibility with different gases and application requirements.

The IE1000A MFC supports multiple I/O options, including analog, RS485, Profibus™, or DeviceNet™, facilitating seamless integration into various control systems.

With a standard closed conductance leak rate of less than 1.0% of Full Scale, the IE1000A ensures accurate and stable flow control. Its settling time of 1 to 2 seconds allows for precise and efficient control in dynamic processes.

In summary, the IE1000A mass flow controller is specifically designed to withstand harsh industrial environments while providing reliable and accurate flow control across a broad range of flow rates.
