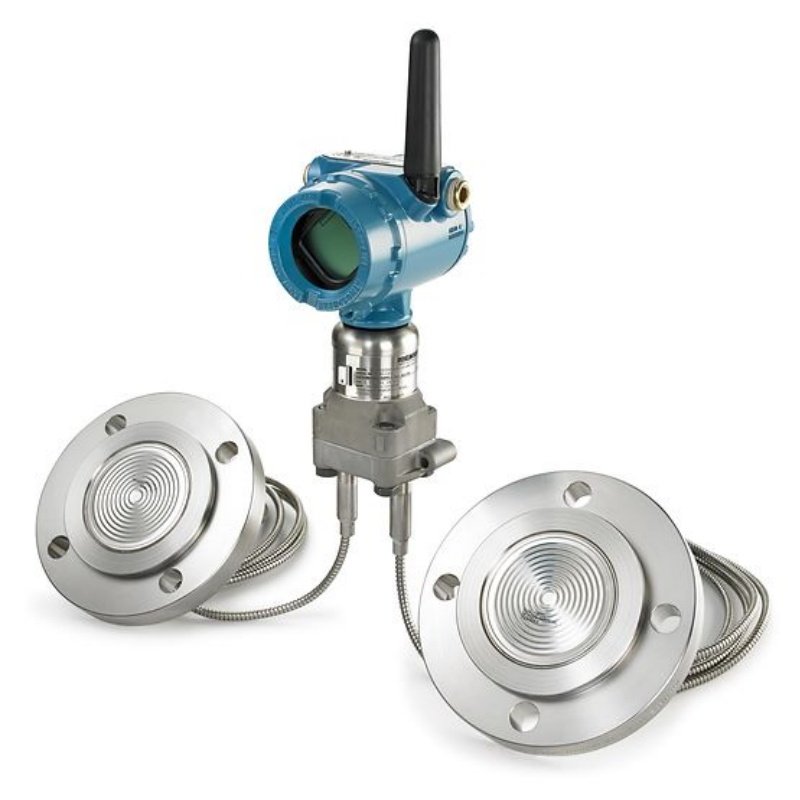

Rosemount™ 3051SAL Wireless Level Transmitter
Experience unmatched optimization of level measurement …
Description
Experience unmatched optimization of level measurement with the Rosemount 3051SAL Wireless Level Transmitter, featuring advanced WirelessHART® technology. This wireless device offers a comprehensive solution for level measurement, with flexible mounting options including direct mounting, remote mounting, balanced systems, and Tuned-System™ assemblies, addressing a wide range of process requirements. Built with a hermetically sealed, stainless steel SuperModule platform, this transmitter ensures field reliability, backed by a 15-year limited warranty, exceptional stability, and a power module life of up to 10 years. Discover the exceptional performance and longevity of this superior level transmitter.
Specifications
| Max. Operating Pressure |
Up to 10,000psi (689.48 bar)
|
| Process Temperature Range |
Based on fill fluid – Maximum 770°F (410°C), Minimum -157°F (-105°C)
|
| Communication Protocol | WirelessHART® |
| Seal System Type | Direct Mount, Remote Mount, Tuned-System, Balanced System |
| Transmitter Connection | Welded-Repairable, All Welded |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, GOST, & JIS Threaded: NPT, DIN, ISO Hygienic |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see full specs for complete list of materials |
| Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
| Certifications/Approvals | NACE®, 3A, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
| Features |
WirelessHART®technology is secure, cost-effective and delivers >99% data reliability
SuperModule platform offers 15-year limited warranty and stability for field reliability
Allows for direct mounting, remote mounting and balanced and tuned-systems to meet various application requirements
Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
Omnidirectional external wireless antennas improve connectivity to remote areas with ranges up to 2/3 mi. (1 km)
Available in various process connections, including flanged, threaded and hygienic seals for application flexibility
Optimized and robust seal system construction provides reliability with repairable-welded and all-welded options
SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Easy installation enables quick instrumentation of measurement points without the cost of wiring
|
