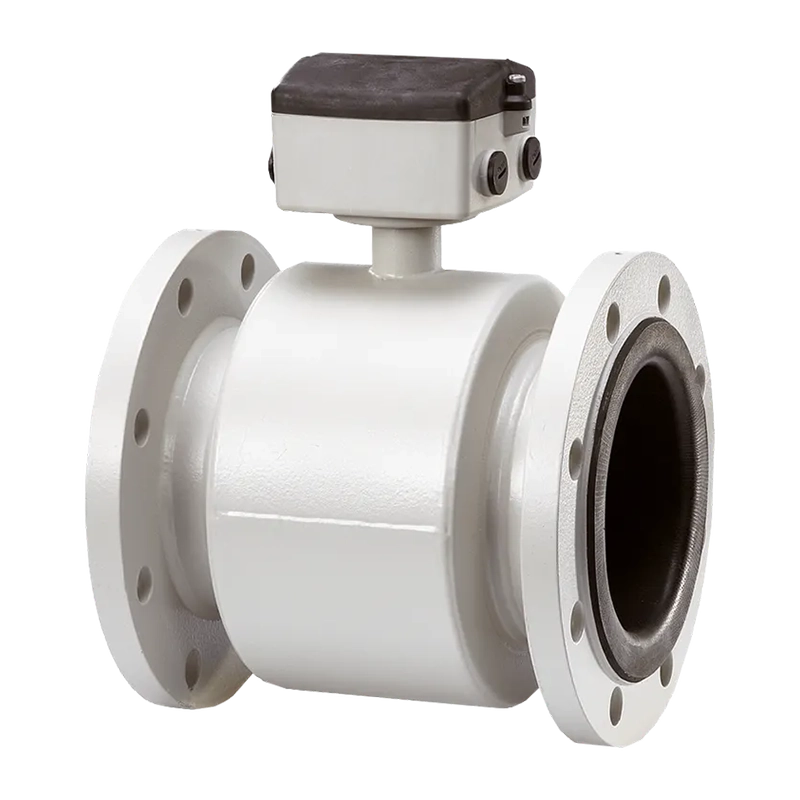

SIEMENS SITRANS FM MAG 3100 electromagnetic flow sensor
SITRANS FM MAG 3100 from Siemens USA is an electromagne…
Description
| Measuring range | 0 to 10 m/s |
| Nominal Sizes | From DN 15 to DN 2000 (½” to 78″) |
| Accuracy | 0.2 % ±1 mm/s |
| Operating Pressure | Max. 100 bar (Max. 1450 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to +212 °F) |
| Medium temperatura | From -40 to 180 °C (-40 to 356 °F) |
| Liners | Neoprene EPDM PTFE PFA Ebonite Linatex |
| Electrodes | AISI 316 Ti (1.4571) Hastelloy C Platinum/iridium Titanium Tantalum |
| Material | Carbon steel (or AISI 304) with corrosion resistant two component epoxy coating or AISI 316 L polished flanges and housing |
| General approvals | E.g.: ATEX, FM, CSA, CT and Drinking Water approvals |
Benefits:
- Fully welded construction that is extremely rugged and capable of withstanding special process conditions using extreme measurement electrodes.
- Universal applications: Lining and electrodes are available for every application, ensuring compatibility and versatility.
- High-temperature version available: Capable of operating in temperatures up to 356 °F.
- Approved for use in potentially explosive atmospheres, providing safety and reliability.
- Integration with SITRANS FM portfolio: The MAG 5000/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
- Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
- Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
- “Hot swappable”: The transmitter can be exchanged during operation.
- Mounting flexibility: Compact or separate installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
