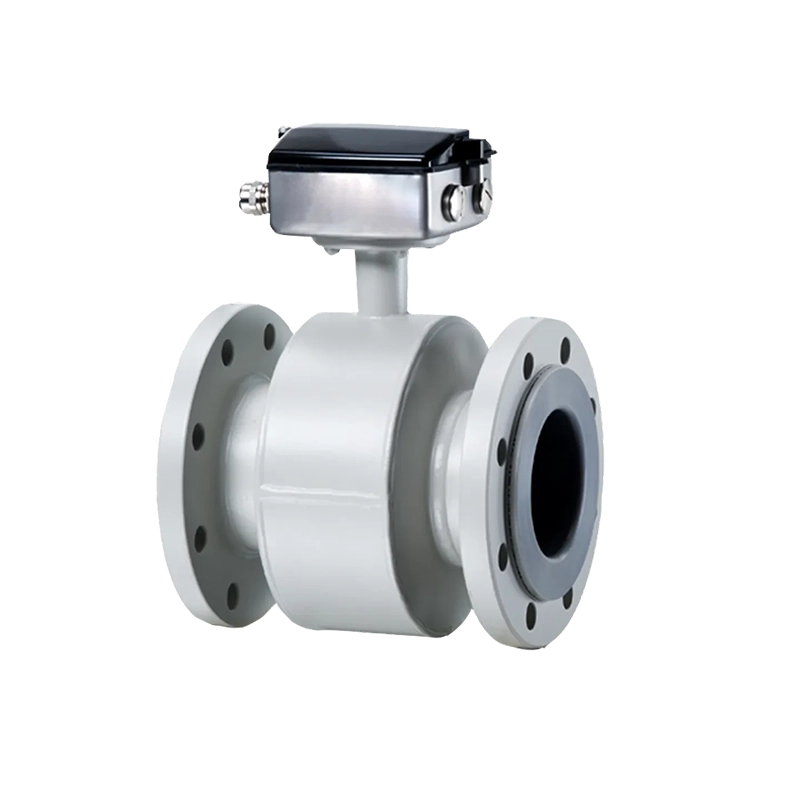

SIEMENS SITRANS FM MAG 3100 P electromagnetic flow sensor
The SITRANS FM MAG 3100 P electromagnetic flow sensor i…
Description
| Measuring range | 0 to 10 m/s |
| Nominal Sizes | DN 15 to DN 300 (½″ to 12″) |
| Accuracy | 0.2 % ± 1 mm/s |
| Operating Pressure | Max. 40 bar (Max. 580 psi) |
| Ambient Temperature | -40 to 100 °C (-40 to 212 °F) |
| Medium Temperature | -20 to 130/150 °C (-4 to 266/302 °F) |
| Liners | PFA, PTFE (Teflon) |
| Electrodes | Hastelloy C22, Hastelloy C276 |
| Material | Carbon steel with corrosion resistant two-component epoxy coating |
| General Approval | ATEX – 2 GD Zone 1, FM / CSA Class 1 div 2 |
Benefits:
- Fully welded construction that is extremely rugged and capable of withstanding special process conditions using extreme measurement electrodes.
- Universal applications: Lining and electrodes are available for every application, ensuring compatibility and versatility.
- High-temperature version available: Capable of operating in temperatures up to 356 °F.
- Approved for use in potentially explosive atmospheres, providing safety and reliability.
- Integration with SITRANS FM portfolio: The MAG 5000/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
- Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
- Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
- “Hot swappable”: The transmitter can be exchanged during operation.
- Mounting flexibility: Compact or separate installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.
