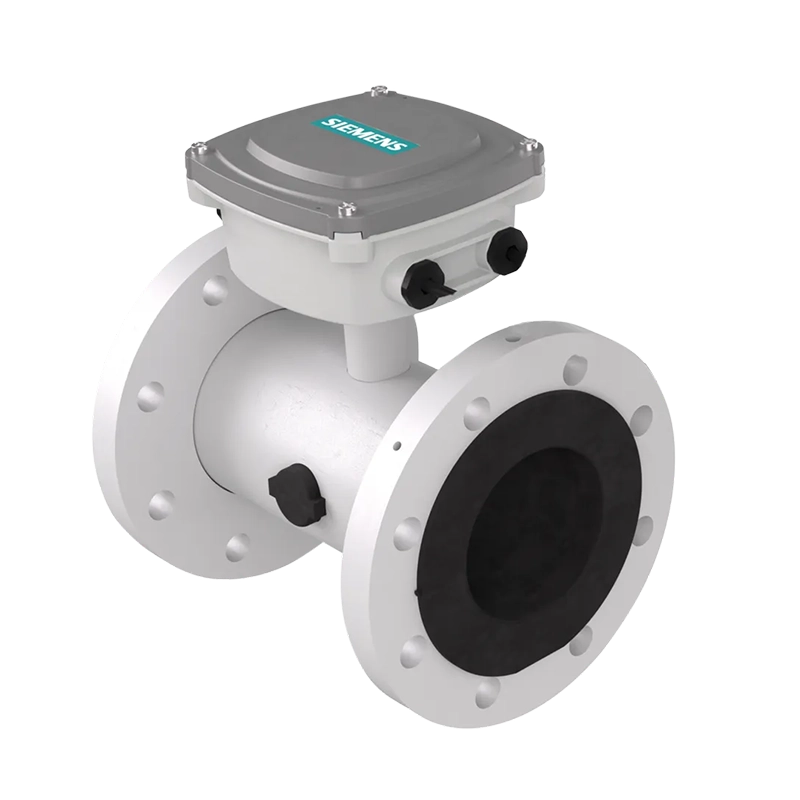

SIEMENS SITRANS FMS500 magnetic flow meter sensor
The SITRANS FMS500 sensor with hard rubber NBR and EPDM…
Description
| Measuring range | 0 to 10 m/s |
| Nominal sizes | DN 15 to DN 1200 (½″ to 48″) |
| Accuracy | Standard 0.4% of rate, option for 0.2% of rate |
| Operating pressure | Max. 40 bar (Max. 580 psi) (dependent on sensor size) |
| Ambient temperature | -20 to 70 °C (-40 to 158 °F) |
| Medium temperature | -10 to 70 °C (14 to 158 °F) |
| Liners | EPDM, NBR |
| Electrodes | Hastelloy C-276, Built-in grounding electrodes |
| Material | Carbon steel with corrosion resistant two-component epoxy coating |
| Drinking water approvals | EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, AS/NZS 4020, GB/T 5750, ACS, BelgAqua |
Benefits:
- Zero Up and Zero Down installation capabilities for convenient and flexible installation.
- EPDM lining specifically designed for drinking water applications that require special approvals.
- NBR rubber liner suitable for all water and wastewater applications.
- Increased low flow accuracy for water leak detection.
- Suitable for underground installation and permanent immersion (IP68) or underwater installation.
- Integrated grounding electrodes eliminate the need for grounding rings in many applications.
- Short delivery time, ensuring quick implementation.
- Connected to the SITRANS FMT020 transmitter, it forms the magnetic flowmeter system SITRANS FM520.
- SENSORPROMTM Technology: Provides automatic upload of start-up settings and calibration data for easy commissioning.
- Plug & Play: Allows easy on-site replacement and commissioning of the transmitter in just a few minutes.
- Mounting flexibility: Compact or remote installation options are available.
- Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
- Service and diagnostics: Designed to allow in-situ verification for easy performance check.
